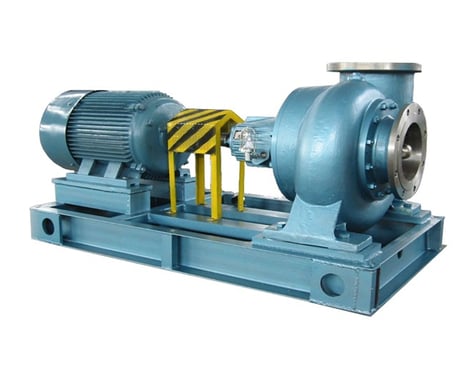

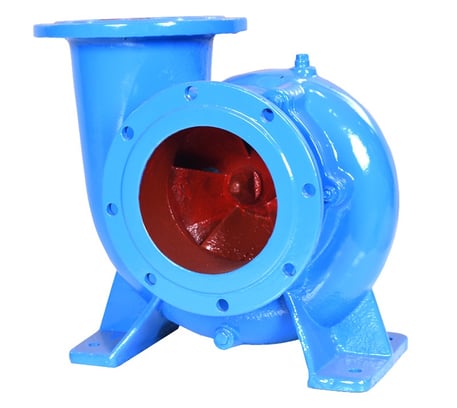

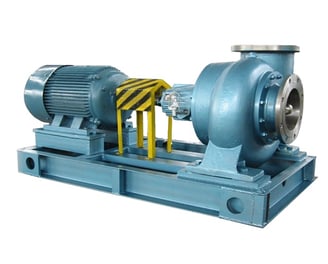

End Suction Pump (HW series)

Main Performance Range

Flow Rate: 15 m³/h - 9000 m³/h
Delivery Head: 2m - 15m
Speed: 1480/1760/980/1176rpm
Outlet Dia.: 100mm - 800mm
Liquid Temp.: 0℃ - 60℃
Working Pressure: ≤ 0.5Mpa
Solid Particle: ≤ 80mg/L
Key Words: End suction pump, horizontal mix flow pump, irrigation pump, horizontal axial flow pump, drainage pump

The HW series single stage mix flow pump are widely used to transfer clean liquid, sewage water, drink water, raw water, sewage water. It is a typical pumps for irrigation and drainage, industrial water supply, urban water supply and drainage.

Model Instruction
E.G.: 350HW-8
HW: Horizontal mix-flow end suction pump (mix-flow)
350: Pump inlet/outlet diamter is 350mm
8: Delivery head is 8m

Applications
Industrial water supply and discharge,
Irrigation and rawater treatment.
Rain water disposal, raw water transferring,
Drainage & waste water disposal
Factory & residential water supply,
Paper & pulp industry , Sugar industry,
Air conditioning, enviromental protection engineering,
Fishing farm, shipyard.
