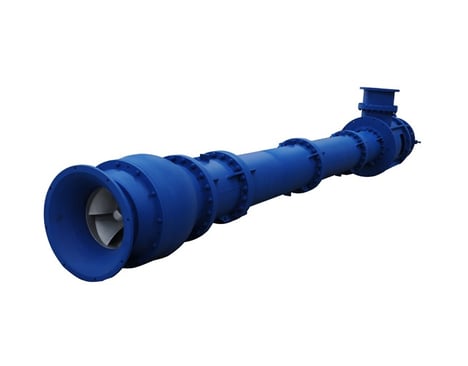

Vertical Turbine Pump (LC series)

Main Performance Range

• Flow Rate: 150 m³/h - 15000 m³/h

• Delivery Head: 5m - 250m

• Speed: 2980/3560/1480/1760rpm

• Outlet Dia.: 150mm - 1200mm

• Liquid Temp.: 0℃ - 80℃

• Working Pressure: ≤ 3.0Mpa

• Solid Particle: ≤ 80mg/L

• Key Words: Vertical turbine pump, propeller pump, VTP pump, vertical submerge pump

The LC/VTC/VTP series vertical installed turbine pump is a vertical line shaft centrifugal pump, which adopt the WILO, CNP hydraulic model. It have the features of wide range, stable performance, easy maintenance and long service life.

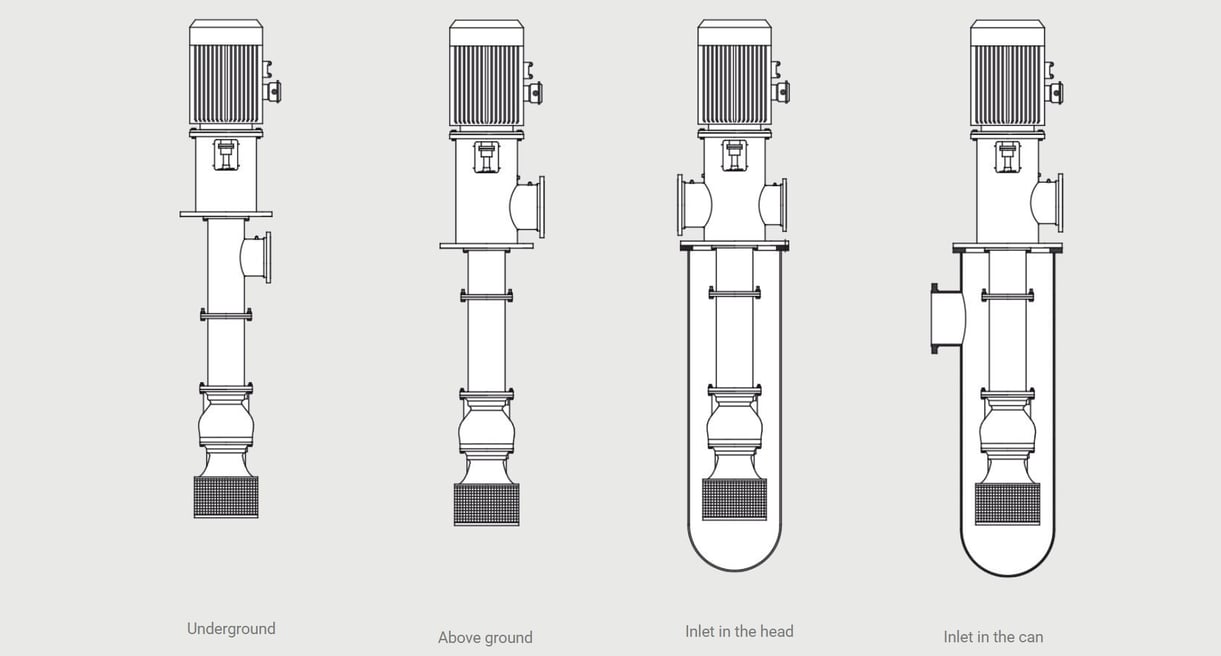

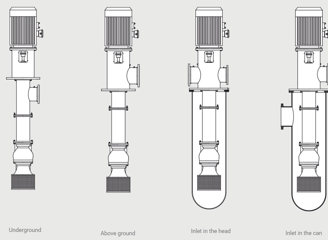

The pump could be design with single installation base or dual base separately, and its discharge could be above the base or below the base according to the site conditions.The impeller parts is submerged into water which will keep the pump impeller full vacuum and no need a pouring water before starting.

Model Instruction
E.G.: 400LC25X2
LC: Vertical turbine pump (propeller pump)
400: Pump outlet diamter is 400mm
25: Rate delivery head is 25m/stage
2: 2 stages

Applications
Industrial water supply and discharge,
Food, wine, drink, drug industry,
Clean water & Hot water transferring,
Chemical liquid transferring,
Sea water desalination & transferring,
Factory & residential drink water supply,
Fibre processing industry,
Paper & pulp industry Sugar industry,
Air conditioning, enviromental protection engineering.
Power station water circulation,
Irrigation and rawater treatment.
