Axial Split Case Pump S-F series

Main Performance Range

Flow Rate: 500 gpm - 5,000 gpm
Delivery Head: 50m - 220m
Speed: 2980/1480/3560/1760rpm
Outlet Dia.: 80mm - 300mm
Liquid Temp.: 0℃ - 60℃
Working Pressure: ≤ 5Mpa
Solid Particle: ≤ 80mg/L
Key Words: split case pump, split casing pump, double suction pump, double entry pump, axial split pump

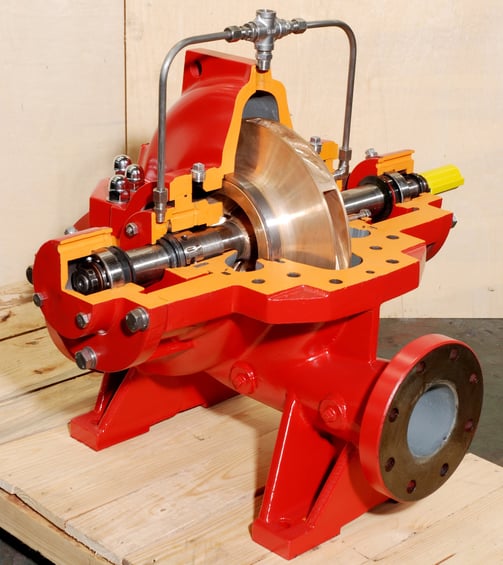

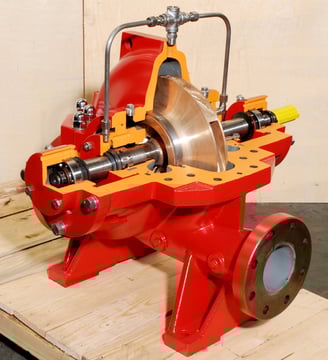

The SF series horizontal split case fire pumps are engineered for reliable operation upon demand. All fabricated parts are standardized and accurately machined for true alignment, increasing overall durability. Precision balancing of all rotating components provides mechanical dependability, reliable operation and minimal maintenance. Impellers are constructed with double inlets that practically eliminated end thrust while boosting operating efficiency.

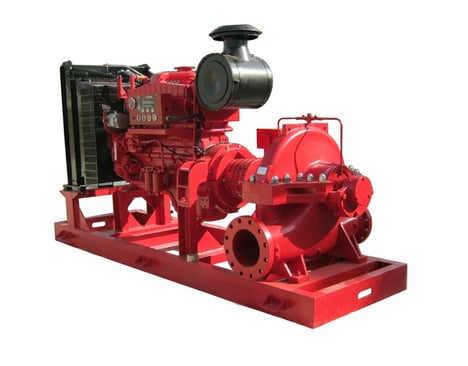

The simple, split case design of these pumps allows for in-line service without disturbing piping while ensuring long, efficient unit life, reduced maintenace costs and minimal power consumption. Whether your fire pump application requires an electric motor, a diesel engine, vertical or horizontal orientation, these industry-approved pumps can be configured to meet your specific needs. These pumps are designed to operate with pressures from 5 Bar to 20 bar, even in excess of 22 bar and flows from 500 gpm to 5000 gpm.

UL448/FM1311 standards are followed strictly during the design, manufacture and testing of these SF split case fire pumps.

Model Instruction
E.G.: SF100-310 (A/B/C...)
S: Single stage double entry split case fire pump
100: Outlet diameter is 100mm
310: Design impeller diameter is 310mm
A(B,C....): Impeller code

Applications
Industrial fire fighting system,

Residential fire fighting system,

Commercial fire fighting system,

Warehouse fire fighting system,

Boat & Sea platform fire fighting.
