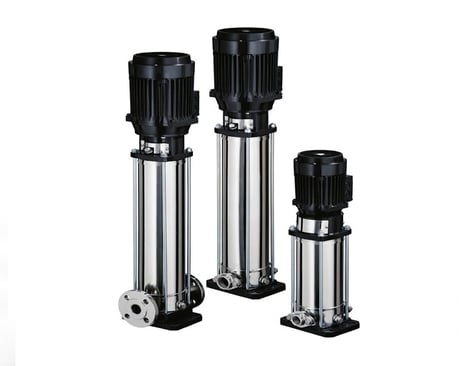

Vertical Multistage (Inline) Pump (CDL series)

Main Performance Range

Flow Rate: 5 m³/h - 280 m³/h
Delivery Head: 20m - 200m
Speed: 2980/3560rpm
Outlet Dia.: 40mm - 150mm
Liquid Temp.: 0℃ - 120℃
Working Pressure: ≤ 3.0Mpa
Solid Particle: ≤ 80mg/L
Key Words: multistage pump, high pressure pump, vertical inline pump, vertical multsitage pump

The CDL series vertical pump is multistage high pressure centrifugal pump specially design for pipeline boosting and high building water supply. It is compact design occupy less space while compare to the horizontal pumps.

It have the features of high efficiency, wide flow & head range, stable performance, and long service life.

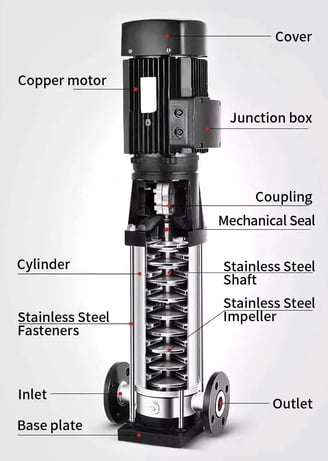

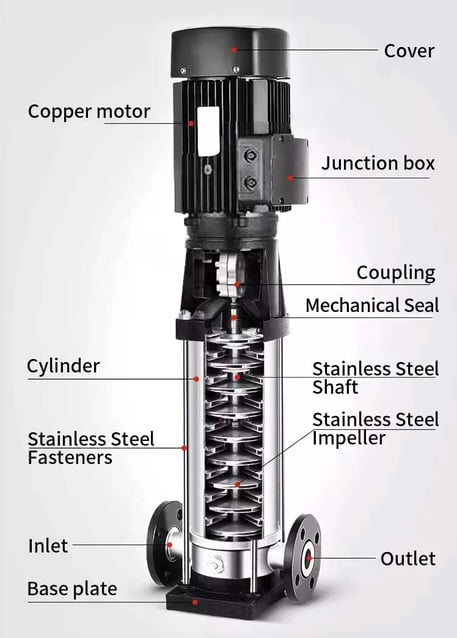

The motor output shaft directly connects with the pump shaft through a coupling device. The pressure-resistant cylinder and flow passage component are fixed between pump head and inlet & outlet section with stay bolts. The inlet and outlet are located at the pump bottom at the same plane. This kind of pump can be equipped with an intelligent protector to effectively prevent it from dry running, out of phase and overload.

Model Instruction
E.G.: CDL32-30-(2)
CDL: Vertical multistage centrifugal pump (Jocky pump)
32: Flow rate is 32m³/h
30: Stage code (30÷10=3 3 impellers)
(2): Small impeller Nos. (if without data, then all impeller same size)

Applications
Water supply and pressure boosting,
Boiler feeding, heating networking boosting,
Light Industry
Hot water transferring, cooling tower,
Sea water desalination & transferring,
Power station water circulation,
Factory & warehouse & residential water supply,
Irrigation and rawater treatment.
