Multistage High Pressure Pump (DG series)

Main Performance Range

Flow Rate: 7.5 m³/h - 720 m³/h
Delivery Head: 50m - 800m
Speed: 2980/1480/3560/1760rpm
Outlet Dia.: 40mm - 300mm
Liquid Temp.: 0℃ - 150℃
Working Pressure: ≤ 12Mpa
Solid Particle: ≤ 80mg/L
Key Words: multistage pump, high pressure pump, ring sectional pump, horizontal multistage pump, boiler feed pump

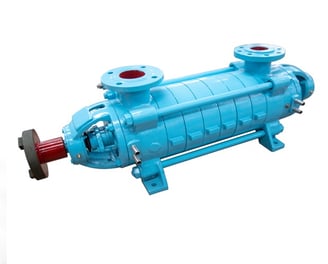

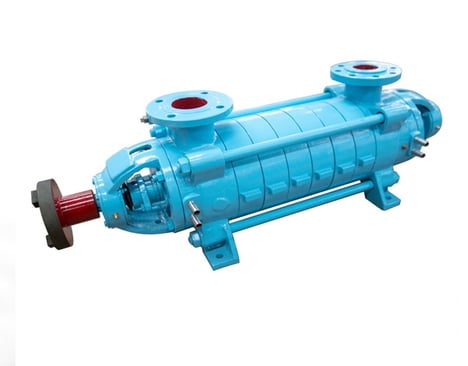

The DG series pump is horizontal multistage centrifugal pump, with the features of high efficiency, wide performance range, stable performance, easy maintenance and long service life.

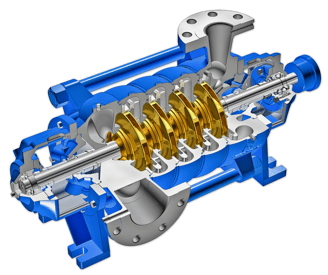

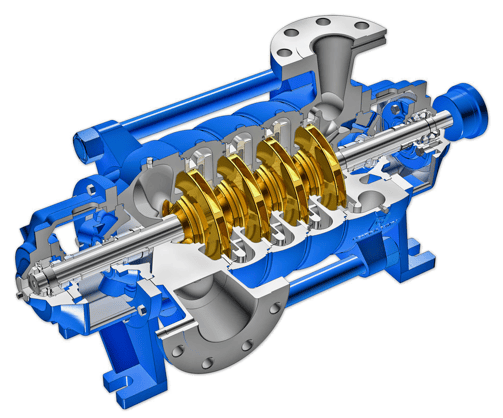

The multistage design compress the water stage by stage and reaching the high pressure to meet the delivery head site required. It is widely used to deliver the clean water, sewage water, corrosive liquid, hot water, seal water and oil liquid by selecting different mater of flow passage parts.

The DG series multistage centrifugal pumps are specially design for hot water projects, it is also named as boiler feed pump. This series of multistage pumps are widely used in high pressure water transferring projects like boiler feeding, heating network boosting, industrial water supply, high building water supply, mining water discharge, long distance water transferring, power plant, salty industry and sea water desalination, etc.

Model Instruction
E.G.: DG46-50X3 (3...12)
D: Multistage centrifugal pump (boiler feed pump)
46: Flow rate is 46m³/h
50: Delivery head is 50m (single impeller/single stage)
3(3...12): Impeller Nos. (Final head = 50m X stages)

Applications
General industrial water supply and discharge,
Boiler feeding, heating network boosting,
Oil, gas & petrochemical liquid processing,
Hot water transferring, raw water intaking,
Sea water desalination & transferring,
Power station water circulation,
Factory & warehouse & residential fire fighting,
Mining water supply & drainage, Water treatment.
